Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LCCL
  • Model Number: P5
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 5mm
  • Screen Dimension: any size
  • Module size: 320*320mm
  • Pixel pitch: 5mm
  • Pixel density: 40000dots/m2
  • Pixel configuration: SMD 3 in 1
  • Pixel resolution: W:64dots*H:64dots
  • Driving method: 1/16 scanning
  • type: P5 led module

Packaging & Delivery

Packaging Details our P5 led module Packaging detail: carton box or wooden case or flight box according to the customer requests.
Delivery Time 7-10days

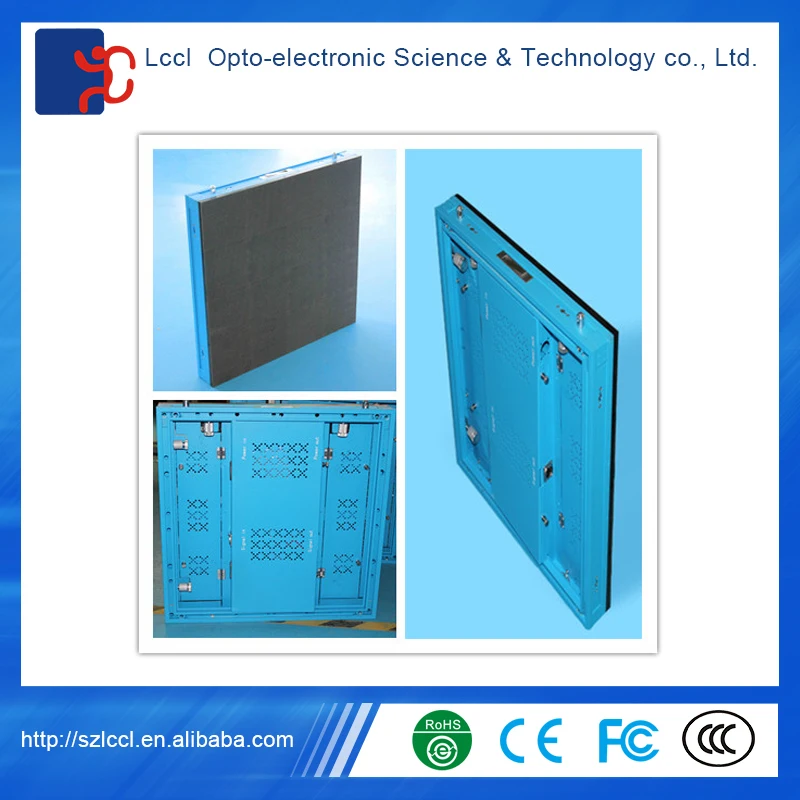

P5 320*160mm indoor full color led module

Product Description
1) Video play: it can play video programs in video camera, VCD, DVD and LD; it can also play files of different formats, such as AVI, MOV, MPG, DAT and VOB; it has three display formats, namely, VGA+VIDE, Video and VGA;
2)Information release: it can display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation; it has lots of display methods, such as rolling, lead-in, lead-out, up shift, left shift and circulation; font, character size, letter and speed can be set randomly;
3)Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time; display screens at different places can be centralizedly controlled through Internet according to customers’ requirements, and “VPM+broadband” may be adopted for remote control.
Range of Application
Products and solutions in LCCL are applied to sports, advertisements, banks, securities, stations, wharfs, plazas, postal service, telecommunication, government units, schools, restaurants, entertainment places, enterprises and etc.

Illuminating engineering

LED light art is successfully applied to LED illumination. That is, different parameters like dot pitch,luminance, angle and quantity of LED are randomly arranged and designed so that LED illumination has hundreds of colors and patterns through control of system and current to realize infinite creative idea of LED light art. Though good advertising effectiveness by huge display screens at hotels, commercial halls and international famous enterprise mansions and etc, employers’ uncommonstrength and taste are shown. Representative works: Administrative Committee Building of Zhuankou High-tech Development Zone, Pengcheng International Mansion and etc.

Pixel Pitch5mm
LED EncapsulationSMD3528/1R1G1B
LED ChipsEpistar
Cabinet resolution128dots*128dots
Cabinet size(mm*mm)640mm*640mm
Pixel density40000dots/m²
Cabinet weight12.5kg/pcs
Cabinet's materialAluminum
Cabinet ColorRED / BLUE / BLACK
Drive chip2026
Drive Method:1/16 Scanning
Brand of power supplyCL 5V~40A
Gray ScaleRecommended 256 level
The best viewing angleHorizontal:140   Vertical:90
Max Power Consumption750W/ m²
Control ModeVideo frequency synchronization
Optimal Viewing Distance≥5m
Blind Spot Rate<0.0001
Brightness Control0-255 Grade
Contrast100 levels adjustable
Earth Leakage Current<2mA
Power Supply ModeAC220V/50HZ or AC110V/60HZ
Protection LevelIP41
Operating SystemWindows98/me/2000/NT/XP
Operating tempertureOperation:-30°C~+60°C
LED display system configuration
Company Information


LCCL is a leading supplier of full color display screen solution throughout the world with more than2000M2 of area and more than 100 staff, and furthermore,imports advanced production equipment from other countries. With production personel of high quality, it devotes itself to providing customers with innovative products, service and solutions that also meet their demands. Value and servicecreated for thecustomers keep growing.



Corporate culture


Prospect: To persistently strive for manufacturing excellent international LED display devices


Concept: Product quality represents our character; technology serves users.


Packaging & Shipping

 Shipping Detail

  1. Delivery time: about 10 - 20days after receive T/T 100% payment.
  2. The price is factoary price in USD,not include the shipping fees.
  3. The price is valid within 15 days.
